Description

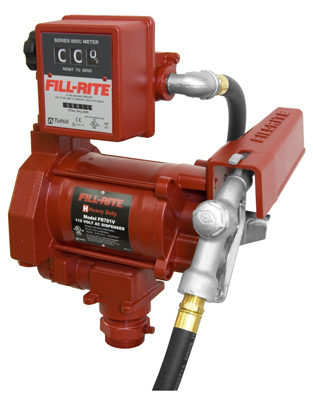

The FR701V model is a 115V AC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components.
Industry Staple - our most popular AC pump that transfers fuel at 20 GPM, a tremendous entry-level option that is ideal for filling medium-sized equipment from aboveground storage tanks
Reliable Technology – proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump
Cast-Iron Construction – durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materiels, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
Max Flowrate
20 GPM / 75 LPM
Flowrate Range
0-20
Inlet / Outlet Thread Size (in.)
1.25 " / 0.75 "
Mounting Size / Thread / Type
2" / NPT / Electric
Duty Cycle
30 min on / 30 min off
Motor Power
0.33
Power Type
AC
Suction Lift (ft.)
15 '
Dry Vacuum (in. Hg)
12
Max Discharge Pressure
23 PSI
Discharge Head (ft.)
53 '
Max Operating Pressure (PSI)
23
Strainer Mesh Size (micron)
40 x 40 x .010"
Accuracy (+/- %)
1 %
Repeatability (+/- %)
0.38 %
Display Type
Mechanical
Display Digits
3
Viscosity Range (cSt)
0.38 - 2.4
Meter
807C Mechanical Meter (Gallons)
Discharge Hose
¾” X 12’ UL Listed Hose with Static Ground Wire
Nozzle
¾” Cast Aluminum Manual Nozzle
Cable Connection
Hard-Wire
Assembled Product Height x Width x Depth (in.)
19 x 14.2 x 11.9
Assembled Product Weight (lbs.)
54.3
Package Height x Width x Depth (in.)
10.25 x 20.56 x 19.56
Gross Weight (lbs.)
62.400 lbs
