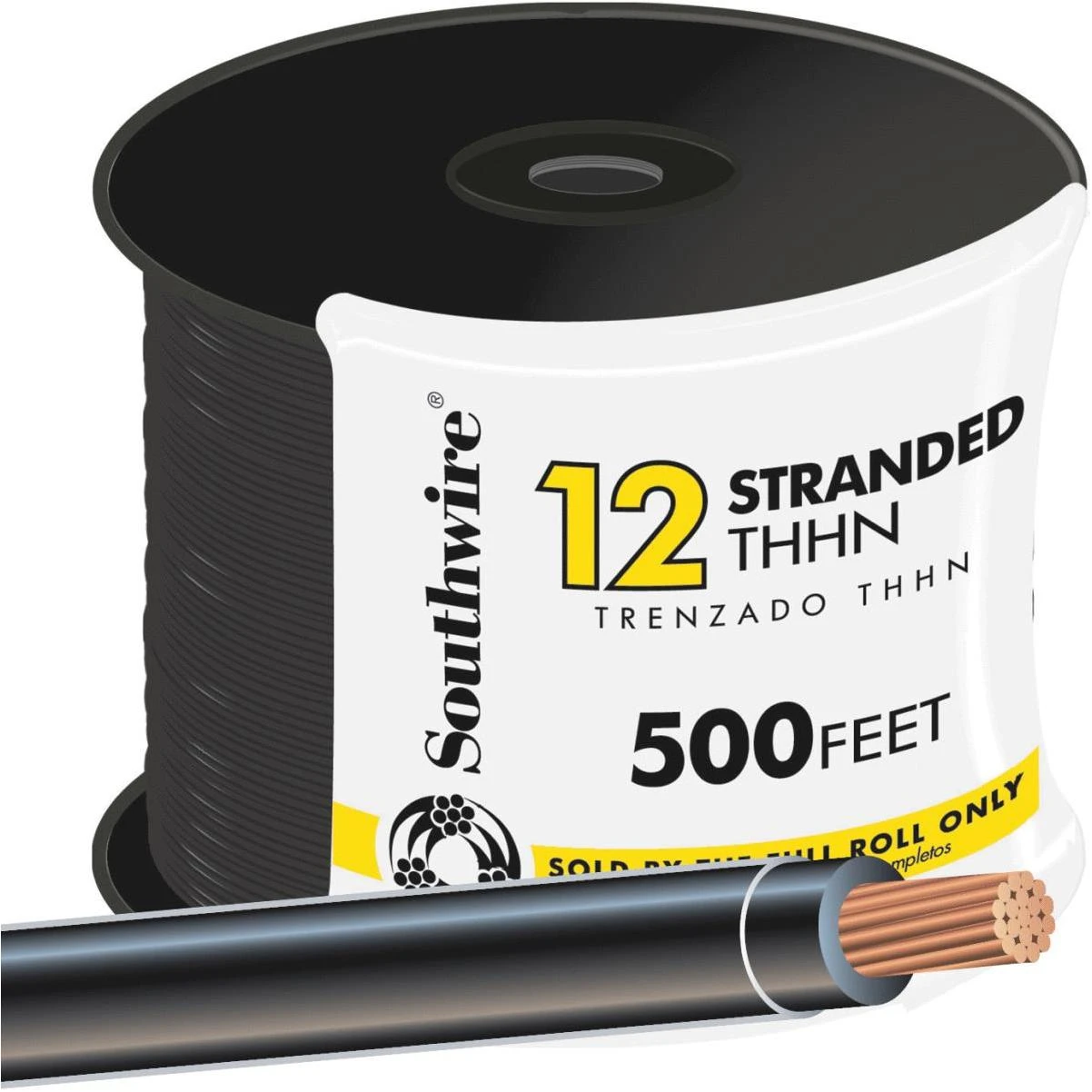

SOUTHWIRE 12-19 SD CU THHN-THWN-MTW-AWM UL/C(UL) BLACK 500 FT
Description
600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM.
Application
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
- THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Standards & References
Southwire® THHN copper conductors comply with the following:
- ASTM - B3
- UL Standards 83 and 758
- CSA C22.2 No. 75
- NOM-ANCE 90° C
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
- VW-1
- FT1
- MTW
- RoHS/REACH Compliant
Construction
Southwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Specifications
Imperial/Metric
| STOCK # | 22964158 | |
| SIZE (AWG OR KCMIL) | 12 AWG | |
| NO. OF CONDUCTORS | 1 | |
| NO. OF STRANDS | 19 | |
| NOM. OD (MILS) | 132 | mils |
| INSULATION THICKNESS (MILS) | 15 | mils |
| JACKET THICKNESS (MILS) | 5 | mils |
| NOMINAL TOTAL WEIGHT (LBS/1000') | 25 | lbs/1000' |
| ALLOWABLE AMPACITY AT 60C | 20 | |
| ALLOWABLE AMPACITY AT 75C | 20 | |
| ALLOWABLE AMPACITY AT 90C | 20 | |
| UPC # | 032886892899 |
