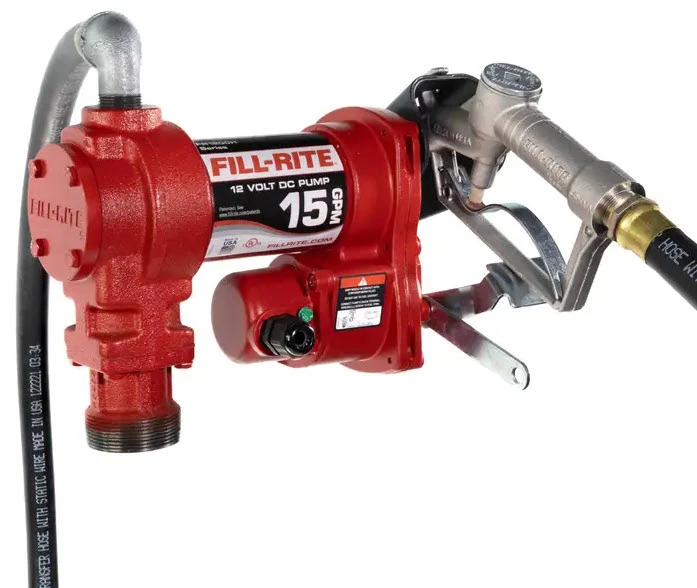

FILL-RITE 12V DC 15 GPM FUEL TRANSFER PUMP WITH NOZZLE
UPC #089404247921
In-store Pickup
.Shipping
Description
The FR1210H model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components.
- Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
- Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
- Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
- Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
- Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
- Equipment Safeguard – Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
- Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
- Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.
Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly manufactured in the USA, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications.
Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
PERFORMANCE
| Max Flowrate | 15 GPM / 57 LPM |
|---|---|
| Flowrate Range | 0 - 15 GPM |
| Inlet / Outlet Thread Size (in.) | 1 " / 0.75 " |
| Mounting Size / Thread / Type | 2" / NPT / Electric |
| Duty Cycle | 30 min on / 30 min off |
| Motor Power | 0.25 |
| Power Type | DC |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Max Discharge Pressure | 16 PSI |
| Discharge Head (ft.) | 37 ' |
| Max Operating Pressure (PSI) | 16 |
| Strainer Mesh Size (micron) | 20x20 |
| Viscosity Range (cSt) | 1 to 4 |
INCLUDED ACCESSORIES
| Discharge Hose | ¾” X 12’ Hose with Static Ground Wire |
|---|---|
| Nozzle | ¾” Cast Aluminum Manual Nozzle |
| Cable Length (ft.) | 18 |
| Cable Gauge | 12 |
| Cable Connection | Bare Leads |
| Battery Quantity | 1 |
DIMENSIONS
| Assembled Product Height x Width x Depth (in.) | 8.4 x 13.0 x 6.5 |
|---|---|
| Assembled Product Weight (lbs.) | 29.1 |
| Package Height x Width x Depth (in.) | 10.63 x 15.44 x 18.31 |
| Gross Weight (lbs.) | 32.000 lbs |
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov
