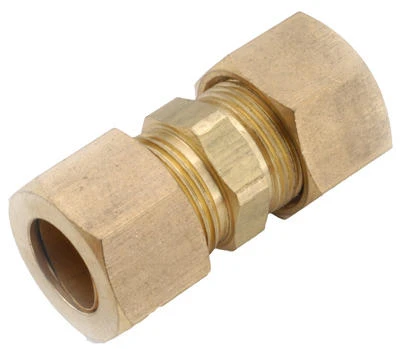

COMPRESSION FULL UNION, BRASS, 5/8 IN.

Name: Compression Full Union, Brass, 5/8 In.
Brand: AMC
SKU: 5156906
Price: 10.99 USD
Availability: InStock

SKU #5156906 Model #710062-10

2 In Stock , Available at

Jerome Valley Wide Country Store , 1466 S Lincoln Ave , Jerome , Idaho

Only 2 Left

Check Inventory at other locations

Will you be going in-store to purchase this product?

. Ready for Pickup Soon

Pick up at Jerome Valley Wide Country Store, 83338

Available

5/8", Brass, Compression Full Union, Lead Free Compliant Product Which Meets Public Law 111-380.

Compliant Product Which Meets California AB-1953
Compliant Product Which Meets Vermont SB-152
Three Piece Construction - Nut, Sleeve (Or Ferrule) And Body
Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
To Buy Compressions Fittings with Long Nut, Please Add a "1" In Front Of The Part Number. (i.e. 68 = 168)
Easy To Disassemble, No Flaring Tool Required
Primary Uses: Water, Gasoline, Oil and Vacuum Lines
To Assemble:
1. Cut Smooth, Square End On Tubbing
2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
3. Insert Tube Into Fitting
4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
