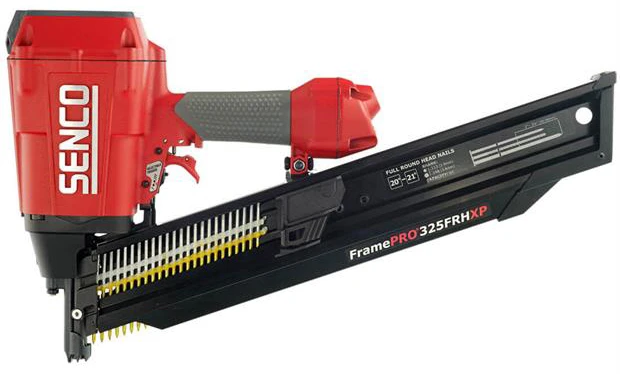

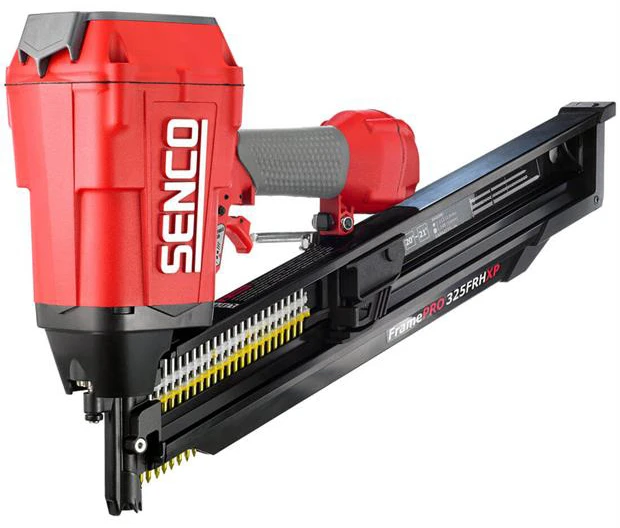

SENCO FRAMEPRO®325FRHXP

This well-balanced, lightweight framing nailer packs plenty of power and won’t leave you fatigued at the end of the day. The FramePro®325FRHXP drives ring, screw, and smooth-shank full round head nails up to 3-1/4” in length into dense engineered lumber commonly used in framing jobs. SENCO’s patented TrueDrive magazine reduces jams and misfeeds, therefore boosting efficiency. The internal design of the FramePro®325FRHXP uses less air, causing less wear and tear on the compressor.

Features

1 -LOW PROFILE DESIGN

Fits easily between studs and joists

2 -PATENTED TRUEDRIVE™ MAGAZINE

Reduces jams and misfeeds

3 -EFFICIENT INTERNAL DESIGN

Uses less air which means less wear and tear on the compressor

4 -TOOL-FREE DEPTH ADJUSTMENT

For consistent flush or countersunk drives

5 -AGGRESSIVE CLAWLIKE SAFETY

For accurate and precise toenailing

6 -SELECTABLE TRIGGER

Makes it easy to switch between contact or sequential firing modes

7 -DRY-FIRE LOCKOUT

Prevents dry firing and signals when to reload

8 -RETRACTABLE RAFTER HANGER

For added accessibility and convenience

9 -IN-LINE MAGAZINE

For better line of sight.

10 -REAR TWO-STEP LOADING

Quick and easy for right or left handed operators.

11 -ALUMINUM HOUSING

Reduces weight and provides superior durability

12 -ERGONOMIC OVERMOLDED GRIP

Reduces fatigue and increases control of the tool

13 -INCLUDED NO-MAR PAD

Protects the worksurface from being scratched or damaged

Applications

• Framing
• Truss Building
• Subflooring
• Sheathing
• Decking
• Siding
• Fencing
• Pallet & Crate Assembly

SPECIFICATIONS

• Item #:4H0101N
• Tool Weight:7.9 lbs (3.58 kgs)
• Height:11.9" (302 mm)
• Length:17.3" (440 mm)
• Width:4.5" (114 mm)
• Warranty:5 years
• Technology: PNEUMATIC
• Trigger Type: Selectable Actuation
• Capacity:64
• Power Type: Pneumatic
• Operating Pressure:70 - 120 (PSI)
• Operating Pressure:4.8 - 8.3 (Bar)
• Air Consumption:5.2 (SCFM)
• Air Inlet NPT:3/8"
• Range:2" - 3-1/4"

FASTENERS

Compatible Fasteners

Type: 20° Angled Strip Full Round Head Smooth Shank Plastic Collated Nails
Degree: 20°
Range: 2-3/8" - 3-1/4"
Collation: 20° Angled Strip

Type: 20° Angled Strip Full Round Head Ring Shank Plastic Collated Nails
Degree: 20°
Range: 2" - 3"
Collation: 20° Angled Strip
