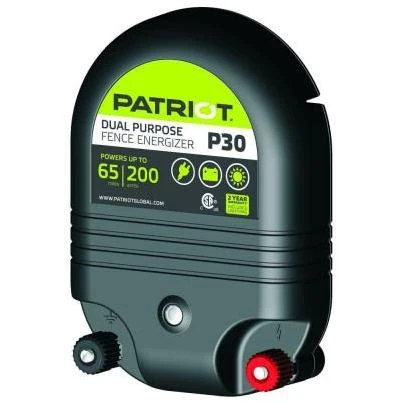

PATRIOT P30 AC/DC DUAL POWERED FENCE CHARGER, 65 MILE / 200 ACRE
Description
PATRIOT P30
- Main / AC
- Battery
- Solar
Most powerful energizer in the lineup with the greatest range and livestock control.
FEATURES & BENEFITS
Multiple power options
Dual-Purpose feature allows energizer to run on 110 V plug or 12 V (deep cycle, marine type) battery*.
Solar compatible
Solar panel* charges a 12 V (deep cycle, marine type) battery* to power the Patriot Dual Purpose energizer and fence line. Ideal for remote areas where AC (110 V) power is not available.
Low impedance energizer
Designed to deliver power to the end of the fence even under heavy load e.g. foliage, undergrowth.
LED indicator
LED indicates pulses when energizer is working.
Robust design
Easy, safe installation and good wire connection.
Easy mounting options
Unique, clip-on wire feature allows mounting on fence wire.
3 year full replacement warranty (including lightning)
- Suitable for
- Cow
- Horse
- Deer
- Pig
- Lamb
- Goat
- Dog
- Rabbit
- Squirrel
- Chicken
TECHNICAL INFORMATION
| DISTANCE RANGE (miles) | 65 miles |
| DISTANCE RANGE (acres) | 200 acres |
| PEAK OUTPUT ENERGY (UP TO) | 3.0 J |
| PEAK STORED ENERGY (UP TO) | 4.5 J |
| OUTPUT VOLTAGE (UP TO) | 11.0 kV max, 6.4 kV @ 500 Ω |
| CURRENT CONSUMPTION | 300 mA |
| RECOMMENDED SOLAR PANEL | 30 watt |
